Cameras, Access Control, Alarm & Smart Doorbell Installation

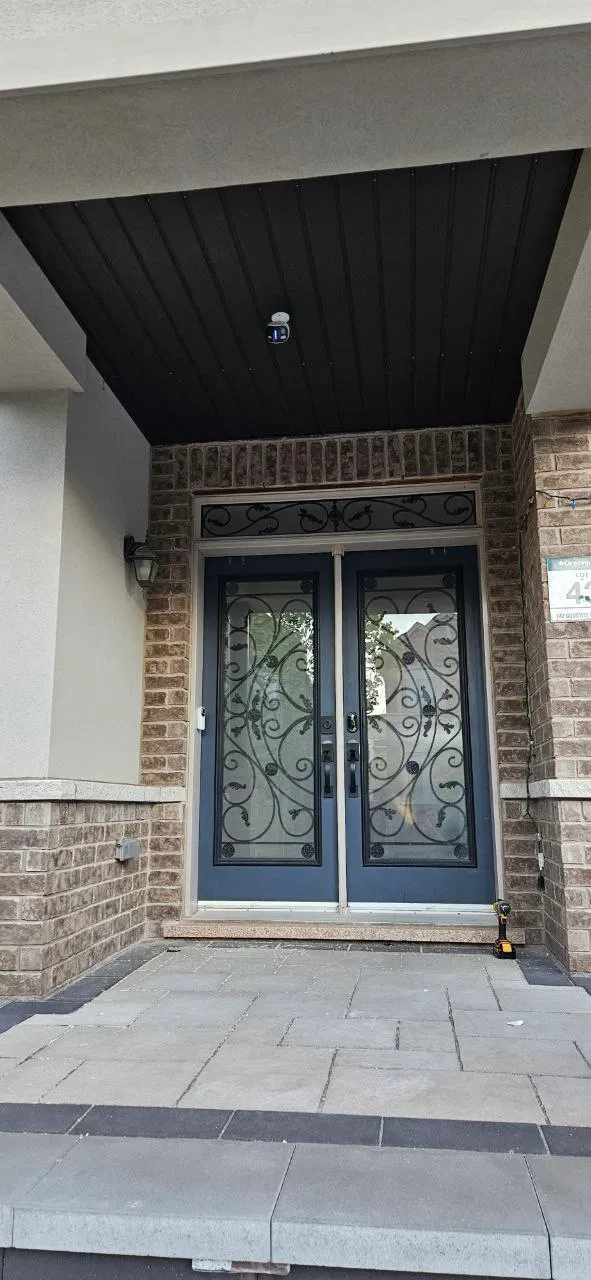

This home’s front entry is a pair of ornate iron-and-glass doors, the kind of feature a homeowner does not want covered in hardware. The challenge was fitting a full security package, cameras, access control, an alarm system, and a video doorbell, around a door that was never designed to hold any of it.

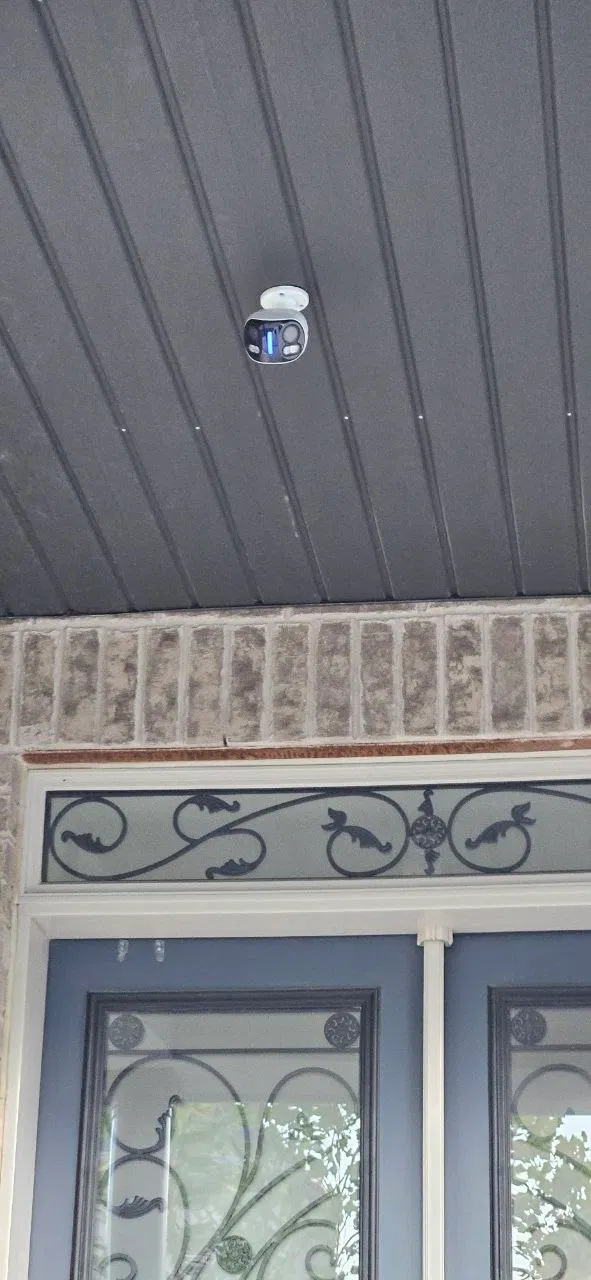

RATA Security solved the entry first. Instead of a separate doorbell button competing for space on the ironwork, a single AI camera with a built-in light was mounted on the soffit ceiling above the doors, covering the full width of the entry and handling the doorbell function from overhead instead of bolted to the frame. Access control and the alarm system tie into the same panel, so the homeowner answers the door, unlocks it, and arms or disarms the system from one app instead of three.

Around the rest of the property, six cameras cover the elevations that mattered:

• The soffit-mounted entry camera doubling as the smart doorbell, watching the full width of the front doors from above

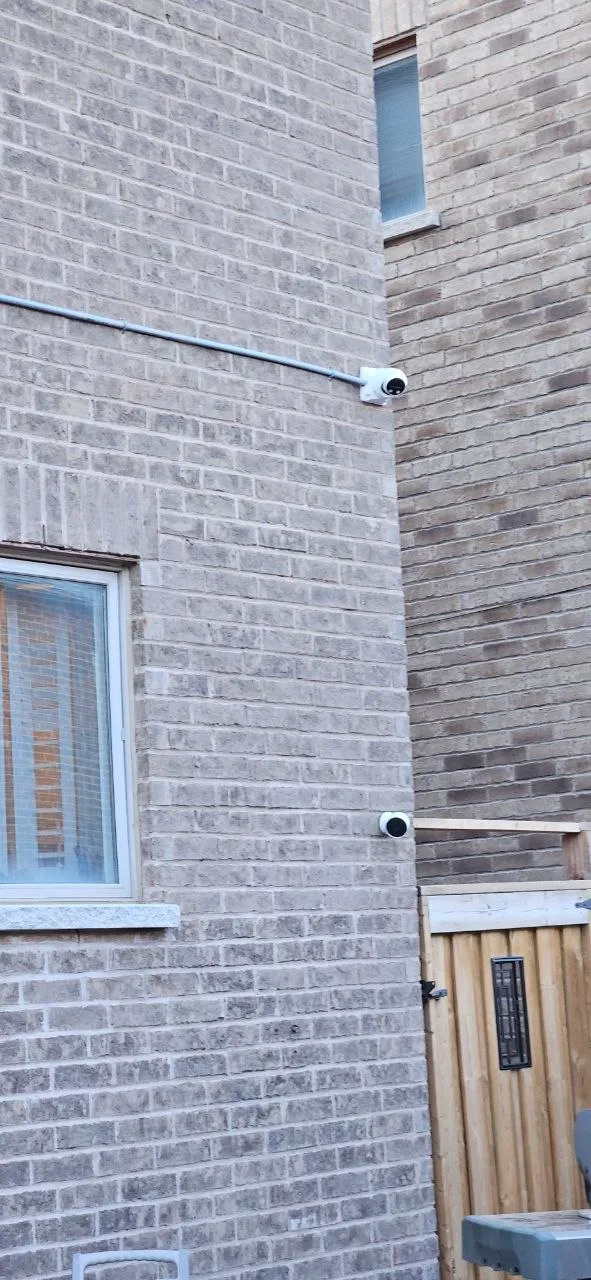

• Two cameras along one side elevation, a bullet camera near the roofline and a dome camera lower down by the window, covering the side yard from two heights
• Two cameras stacked at the rear corner, a bullet camera with a built-in infrared illuminator above a dome camera, giving that corner both a wide low-light view and a tighter angle without needing a separate floodlight

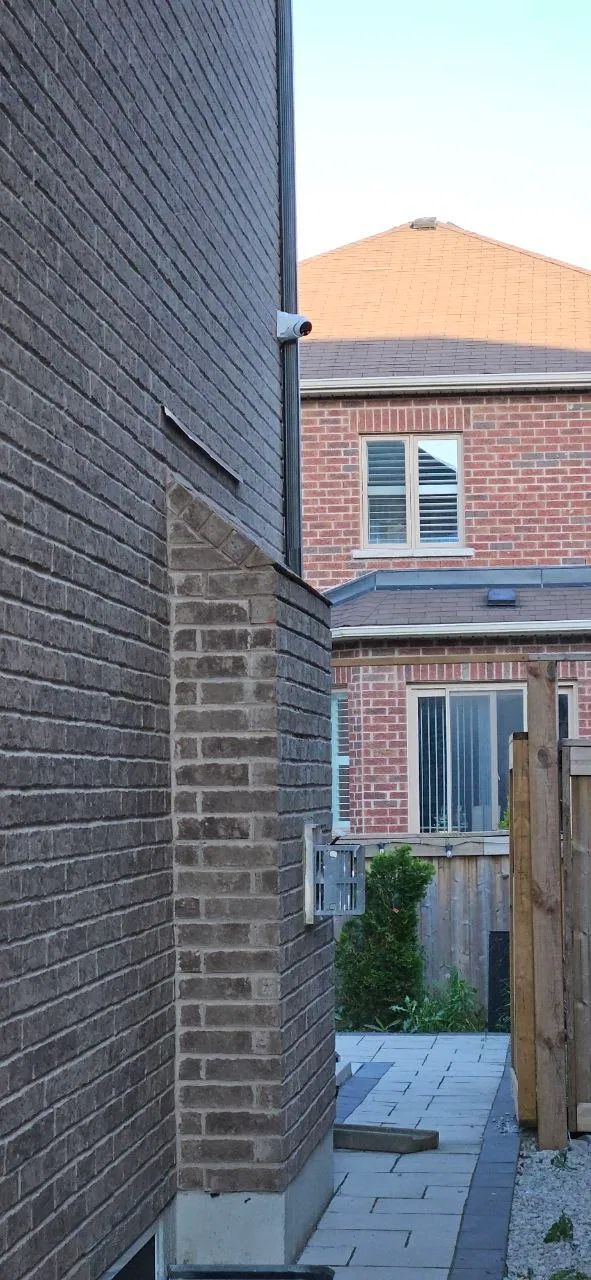

• One camera tucked under the eave covering the walkway between this property and the neighbouring home

The detail worth knowing

The instinct on a job like this is to treat cameras, access control, and the alarm as three separate installs because three different systems are going in. The better approach is to design the entry once and let every system share it: one camera over the door doing doorbell duty instead of stacking a doorbell, a reader, and a lens on the same frame. At the rear corner, the same logic applied to hardware choice instead of layout, a bullet camera with its own infrared illuminator covers the darkest part of the property without a separate floodlight to wire and maintain. And on the most visible corner, the cable run sits in a slim square raceway rather than round conduit, reading more like a downspout trim piece than an add-on. None of these choices change what the system does. They change whether the homeowner notices it is there.
